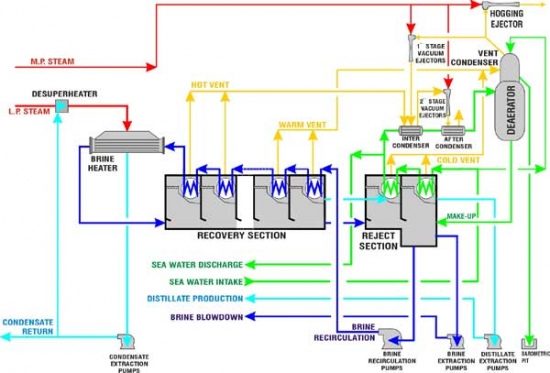

MSF process (Multi Stage Flash)

The sea water evaporation is realized by flash into multiple flash chambers each of them working at a different pressure. A cascade of stages is realized, through which the vacuum degree increases up to the last stage (the coldest stage).
Sea water is required in large excess as cooling medium, in order of the heat reject for Heat Balance closure, while only a portion of the total sea water demand is used as make-up water to the evaporator.

Each stage the condensing vapor release his heat to the sea water for preheating.

MSF special features
WELL TESTED IN-HOUSE PROCESS OPTIMIZATION PROGRAMS

  • Coming from decades of experience
  • High thermal efficiency
  • Optimization of the brine recirculation

EXCELLENT DEAERATION OF SEA WATER MAKE UP WATER

  • No need for oxygen scavengers
  • Prevention of corrosion

WELL PROVEN PROPRIETARY DESIGN OF BRINE TRENCHES (PRE-FLASH)

  • Wide range of modulation of the brine recirculation
  • Enhanced operation flexibility (lower TDR)

SED® SYSTEM (SWS patent)
Desalinated water TDS < 0,5 ppm
